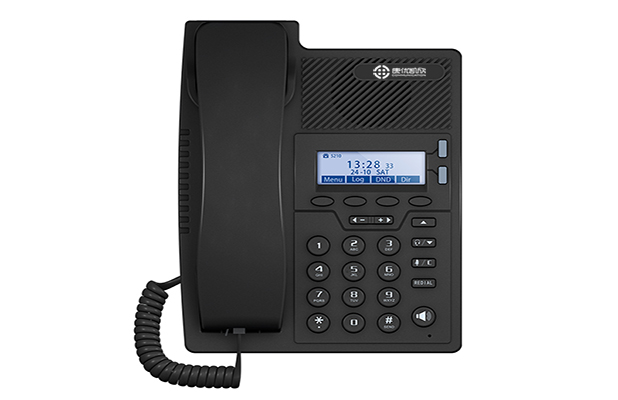

The Kangyou SIP-SOT205 is a feature-rich and minimalist office phone. It features a 128* 64-pixel high-definition graphic dot matrix screen with up to 4-line display. In addition, it offers high-definition audio quality, unique artistic design, and a detachable stand for multi-angle office use. Five customizable function keys and a friendly user interface fully meet users' communication and collaboration needs.特点
● 2 SIP accounts, supporting one-click long press for quick editing
The detachable stand provides multi-angle office work
● 5 customizable function keys (2 line keys/navigation key up/navigation key down/redial key)
● Supports multiple languages: Chinese, English, Russian, French, Italian, etc
● Two 10/100M Ethernet ports, supporting POE power supply over Ethernet
● Plug and play: Automatic upgrade
Telephone characteristics
Supports multiple languages (Chinese/English/Russian/French/Italian/Turkish/Brazilian/Portuguese)
Supports 2 SIP accounts
Supports call holding, call waiting, call forwarding and callback
Call transfer (busy transfer, blind transfer, consultation transfer)
Caller ID, redial, mute, Do Not Disturb (DND)
Automatic response, three-party voice conference call
Speed dialing, text messages, voice messages
Information indicator light, national signal tone, volume control
Support direct IP dialing without an account
Ringtone selection, import, and deletion (8 built-in)
Support time setting (obtained by SNTP/SIP Server/manual)
Blacklist, call records (50 each for dialed, received, missed and transferred calls)
Supports PC control and SIP primary and backup server switching
Advanced functions
Five customizable programming soft keys
Supports XML personal contact list search/import/export (300 items), and dial-up fuzzy search
Enterprise Address Book (800 items)
LDAP Address Book
PBX compatibility function
BLF/BLA, BLF list, Do Not Disturb & Call forwarding
Intercom, Paging
Dialing rule, call out immediately
Call pickup, call on behalf of others
Wait for the prompt sound and distinguish it from the ring
Anonymous call, anonymous call rejection
Audio parameters
Broadband code: G.722
Narrowband coding: G.711μ/A, G726, G.729AB,iLBC
Supports audio processing such as VAD, CNG, AEC, AGC, etc
Full-duplex hands-free with automatic echo cancellation
Network parameters
Supports SIP V1(RFC2543), V2(RFC3261)
Support DNS SRV(RFC3263)
Support STUN internal network penetration
Supports three DTMF modes: In-band, RFC2833, and SIP INFO
Three IP acquisition methods are supported: static IP/DHCP/PPPoE
The network port supports bridging and router modes
Built-in DNS/TFTP/FTP clients
Supports NAT/DHCP services
Supports SIP and RTP QoS
Configuration Management
Supports automatic updates via FTP/TFTP/HTTP/HTTPS
It supports three configuration modes: web page, phone and automatic configuration
Telnet Management
Built-in HTTP Web server user configuration management
Safety features
Supports VLAN(802.1pq), LLDP, and VPN(L2TP)
Support the TLS(Transport Layer Security) protocol
Support the information verification mechanism MD5
Supports AES encryption protocol
Supports keyboard lock and administrator/user hierarchical mode
Physical parameters
128x64 pixel graphic LCD (backlight optional)
There are a total of 25 external buttons
Two LED lights: two circuit lights
One RJ9 handle interface
One RJ9 headphone jack
Two 10/100M Ethernet ports
Power adapter: AC 100-240V input, DC5V/1A output
Supports detachable brackets for Angle adjustment
Supports Power over Ethernet (POE)
Ieee 802.3AF class 0(Optional)
Power consumption: 1.5W
Net weight: 0.62kg
Bare machine size: 213x157x39MM
Operating environment humidity: 10-95%
Operating temperature: Below 60 degrees
Outer box packaging
Quantity per box: 10 pieces
Net weight/box: 6.2kg
Gross weight per box: 8.5kg
The dimensions of the outsourcing box are 430x345x250MM
